12 Station Roll Former
Disclaimer: All content provided on this blog is for informational purposes only.
This design is the property of INDUSTRIAL EQUIPMENT DESIGNS INC. and cannot be copied or submitted to outside parties for use or examination.

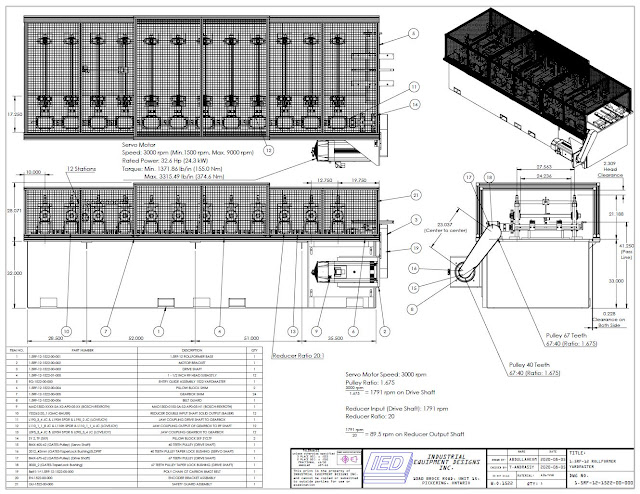

All components was taken down from machine and cleaned up, some parts replaced with new ones. I took all measurements and part numbers. Afterwards i was create the 3D model and 2D drawings of machine. (3D models by Solidworks and 2D drawings by Solid Edge) Collaborated with shop team to build some new parts and re-assemble machine. This machine includes many sub-assemblies such a bearings, gears, shafts, gearboxes, belts, chains, sprockets, pillow blocks. Disclaimer: All content provided on this blog is for informational purposes only. This design is the property of INDUSTRIAL EQUIPMENT DESIGNS INC. and cannot be copied or submitted to outside parties for use or examination. Before Refurbishment After Refurbishment 3D Model Some Drawings Some Sub Assembly Animations
