Hydraulic Cut off Unit Base

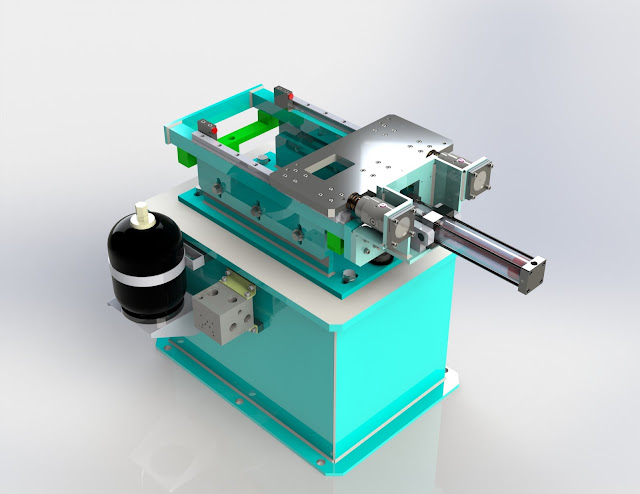

This is a hydraulic cut off unit base.

This assembly includes linear bearings, shock absorbers, bar manifold, accumulator, chain sprocket, air cylinder.

Some parts are taken from manufacturer CAD library.

Disclaimer: All content provided on this blog is for informational purposes only.

This design is the property of INDUSTRIAL EQUIPMENT DESIGNS INC. and cannot be copied or submitted to outside parties for use or examination.
